High Precision Inductance/Capacitance L/C Meter LC100-A ($25.13 + Free Shipping)

Description

• Modle:LC100-A
• Size: 81 x 47 x 30 mm ( L*W*H )
• Supply power: +5v ,mini USB interface
• Measurement accuracy:1%
• Capacitance measuring range: 0.01 pF - 10uF
• The minimum resolution: 0.01 pF
• Big Capacitance measuring range ???1uF-100mF/minimum resolution:0.01UF
• Inductance measuring range: 0.001 uH - 100mH
• Big inductance measuring range: 0.001 mH - 100H
• The minimum resolution: 0.001uH
• Test frequency range: L/C about 500KHZ/Big inductance 500HZ
• Effective display digits: 4 digits
• LCD display mode: 1602

Note:When measuring the frequency of the inductance or Capacitance, please press the black button, as the PIC shows.
Please reset to zero, before testing a Capacitance or inductance, or it may damage the board.
If the result on the LCD is not stable, it s normal due to the poor quality of L/C.

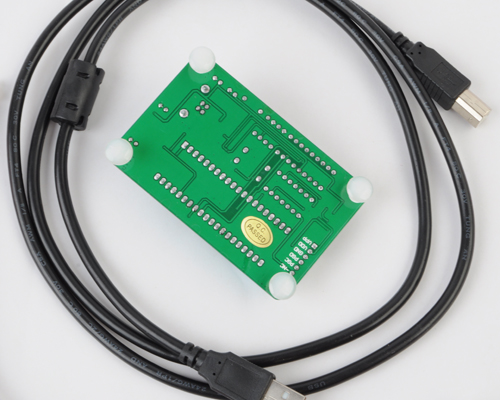

PIC USB Automatic Programming MCU Programmer K150 + ICSP Cable (10.5 + Free Shipping)

1. Features

• Support the most popular programming PIC chips, read, encryption and other features!
• No external power supply, communication and power is only a USB cable to print complete, without any cable.
• PICSTARTPLUS much faster rate than programming.
• Can easily read the contents of the chip program area.
• Automatic programming verification.
• Comprehensive information prompts, allowing users to understand the working state.
• With 40pin ZIF programming of the seat, can be directly programmed in 8-pin to 40 pin PIC microcontroller chip can be programmed using ICSP online or add conversion blocks.
• 8 pin 40 pin-board outside the chip can be downloaded directly online ICSP output.
• Compatible with Windows98 and Windows2000/NT, Windows XP / Windows 7 and other operating systems.
• Programming software provides easy to use instructions

1. PIC MCU models support

10 Series: PIC10F200 * PIC10F202 * PIC10F204 * PIC10F206 * PIC10F220 * PIC10F222 *

12C Series:PIC12C508 PIC12C508A PIC12C509 PIC12C509A PIC12C671 PIC12C672 PIC12CE518 PIC12CE519
PIC12CE673 PIC12CE674

12F Series:PIC12F508 PIC12F509 PIC12F629 PIC12F635 PIC12F675 PIC12F683

16C Series:PIC16C505 PIC16C554 PIC16C558 PIC16C61 PIC16C62 PIC16C62A PIC16C62B PIC16C63
PIC16C63A PIC 16C64 PIC16C64A PIC16C65 PIC16C65A PIC16C65B PIC16C66 PIC16C66A
PIC16C67 PIC16C620 PIC16C620A PIC16C621 PIC16C621A PIC16C622 PIC16C622A PIC16C71
PIC16C71A PIC16C72 PIC16C72A PIC16C73 PIC16C73A PIC16C73B PIC16C74 PIC16C74A
PIC16C74B PIC16C76 PIC16C77 PIC16C710 PIC16C711 PIC16C712 PIC16C716 PIC16C745
PIC16C765 PIC16C773 PIC16C774 PIC16C83 PIC16C84

16F Series:PIC16F505 PIC16F506 PIC16F54 PIC16F57 * PIC16F59 * PIC16F627 PIC16LF627A PIC16F627A
PIC16F628 PIC16LF628A PIC16F628A PIC16F630 PIC16F631 PIC16F631-1 PIC16F636 PIC16F636-1
PIC16F639 * PIC16F639-1 * PIC16F648A PIC16F676 PIC16F677 PIC16F677-1 PIC16F684 PIC16F685 *
PIC16F685-1 * PIC16F687 * PIC16F687 *- 1 PIC16F688
PIC16F689 * PIC16F689-1 * PIC16F690 * PIC16F690-1 *
PIC16F716 PIC16F72 PIC16F73 PIC16F74 PIC16F76 PIC16F77 PIC16F737 PIC16F747
PIC16F767 PIC16F777 PIC16F83 PIC16F84 PIC16F84A PIC16F87 PIC16F88 PIC16F818
PIC16F819 PIC16F870 PIC16F871 PIC16F872 PIC16F873 PIC16F873A PIC16LF873A PIC16F874
PIC16F874A PIC16F876 PIC16F876A PIC16F877 PIC16F877A

18 Series: PIC18F242 PIC18F248 PIC18F252 PIC18F258 PIC18F442 PIC18F448
PIC18F452 PIC18F458 PIC18F1220 PIC18F1320 PIC18F2220 PIC18F2320
PIC18F2321 PIC18F4210 PIC18F2331 PIC18F2450 PIC18F2455 PIC18F2480
PIC18F2510 PIC18F2515 PIC18F2520 PIC18F2525 PIC18F2550 PIC18F2580
PIC18F2585 PIC18F2610 PIC18F2620 PIC18F2680 PIC18F4220 PIC18F4320
PIC18F6525 PIC18F6621 PIC18F8525 PIC18F8621 PIC18F2331 PIC18F2431
PIC18F4331 PIC18F4431 PIC18F2455 PIC18F2550 PIC18F4455 PIC18F4550
PIC18F4580 PIC18F2580 PIC18F2420 PIC18F2520 PIC18F2620 PIC18F6520
PIC18F6620 PIC18F6720 PIC18F6585 PIC18F6680 PIC18F8585 PIC18F8680

Download Material

Infrared Remote Control Module HX1838 NEC Code

1. Introduction

Containing three 20cm DuPont line
Sensor uses HX1838, high sensitivity
Operating voltage 5V
Output form: Digital output

2. Module Interface Description

VCC: 3.3V-5V external voltage (can be directly connected to the 5v microcontroller and 3.3v microcontroller)
GND: external GND
IN: external microcontroller I/O port, I/O port has been designed 10K pull-up resistor

Kit theory test distance of about 5-8 meters, but the practical application depends on the ambient factors you use, as well as the middle barrier (such as diaphragm, glass, obstructions or other material blocking), receiving head with HX1838 with power work instructions lights, receive 38K frequency any remote coding data!

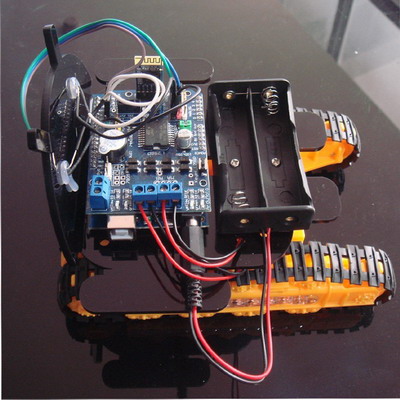

Bluetooth Caterpillar Vehicles Track Car for Arduino UNO Android ($97.62 + Free Shipping)

Arduino UNO Main technical parameters

1. 14 digital input/output port TX and RX, D2 ~ D13,
2. 8 analog input port A0 ~ A7
3. one TTL level serial transceiver port RX/TX
4. 6 PWM ports, D3, D5, D6, D9, D10, D11
5. Using Atmel Atmega328P and ATMEGA8U2 microcontroller
6. frequency 16MHZ
7. Support the USB download and power supply
8. Support external 7-12v dc power supply
9. Support 9v batteries
10. Support ISP download
11. Three kinds of power supply mode: USB, VIN, an external 5v input

ARDUINO L298 shields

1. A L298P motor driver chip on the board, directly references the mainboard digital IO port,
2. Onboard a buzzer, can set astern alarm bell.
3. Convenient motor interface, can be divided into two motor output
4. Two bluetooth interface, can be directly plugged into
5. D2, D3, D5, D6, D7, D9, D13 seven digital interface without being used
6. A0 - A5 six analog interface
7. Going back to have light

Package list:

1. ARDUINO track vehicle x1
2. ARDUINO UNO board x1
3. ARDUINO 298 extension board x1
4. Bluetooth module x1
5. 18650 battery box x1
6. 18650 charger x1
7. 3w LED module x1
8. RGB leds x2
9. Dupont line x20
10. Organic glass 3mm x1
11. Copper column x4
12. Screw x10
13. Nut x10
14. USB cable x1

IC2262/2272 4 Channel Wireless Remote Control Kits ($3.05 + Free Shipping)

It's the Best Seller of www.ICStation.com.

1. Remote control

• Operating voltage: DC12V (27A/12V battery x1)
• Operating Current: 10mA @ 12V
• Radiated power: 10mw @ 12V
• Modulation mode: ASK (Amplitude Modulation)
• Transmitting frequency: 315MHZ (SAW frequency stabilization)
• Transmission distance :50-100M (Open field the receiver sensitivity -100dbm)
• Encoder types: fixed code
• The frequency of this product is 315 mhz

2 .Decoding receiver board

The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
Size: 6.6*22*41mm

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.

Flash Sale of www.ICStation.com

Check the latest flash sale of www.ICStation.com at http://www.icstation.com/daily_deals.php to save $$$.

We pich the items for flash sale randomly. So please bookmark the link and check it regularly.:)


MAX7219 Dot Matrix Module Control Display Module DIY kit Cascade - Designed by ICStation.com

MAX7219 Dot Matrix Module Control Display Module DIY kit Cascade

Product Feature:

• Seamless splicing and so that the dot matrix can be flexible spliced .
• Common cathode with bright dot matrix(8*8), display fresh and brilliant picture.
• A screen roll freely, to achieve the perfect picture display
• Since the master chip is used in Max7219 to make product have the following characteristics:

1).The transmission efficiency of up to 10MHz.
2).Can be individually controlled for each point.
3).Lowest power consumption of 450uA (one module).
4).Power-on reset automatically display full black
5).Serial communication, a great saving of MCU I/O, also can be extended To expand the program with SPI.
6).For each screen brightness control, by setting the Max7219 instructions.

Ⅱ.Application: Education,DIY, Robot,etc.

Ⅲ.ABSOLUTE MAXIMUM RATINGS

• Voltage (with respect to GND) V+: -0.3V to 6V
• DIN, CLK, LOAD, CS: -0.3V to 6V Current
• DIG0-DIG7 Sink Curr: 500mA
• SEGA-G, DP Source Current: 100mA
• Continuous Power Dissipation (TA=+85°C) Narrow Plastic DIP: 0.87W
• Wide SO: 0.76W
• Narrow CERDIP: 1.1W
• Operating Temperature Ranges(Max7219) MAX7219: 0°C to +70°C
• Storage Temperature Range: -65°C to +160°C
• Lead Temperature (soldering, 10sec): +300°C

Ⅳ.PIN Define

• CLK: Serial-Clock Input. 10MHz maximum rate.
• CS: Chip-Select Input. Serial data is loaded into the shift register while CS is low.
• DIN: Serial-Data Input. Data is loaded into the internal 16-bit shift register on CLK´s rising edge
• DOUT: Serial-Data Output. The data into DIN is valid at DOUT 16.5 clock cycles later.
• VCC: Positive Supply Voltage. Connect to +5V.
