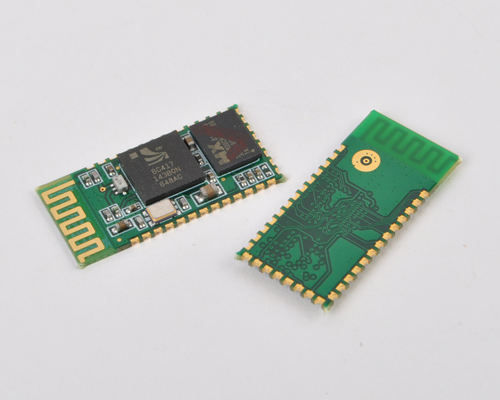

Wireless Bluetooth Transceiver Module RS232 / TTL HC-05

Hot Deal: $5.49 + Free Shipping



1. Introduction
  • Brand new and high quality
  • Suitable for Bluetooth adapter, Bluetooth phone use, master-slave can also be used in double
  • Can be set for the module control parameters and control commands issued via AT commands
  • Provide 7 input and output ports, scalable user IO resources
  • Work status indicators; connection with the non-connection state signal output, easy to track the status of module MCU
  • Great for embedded wireless serial transmission alternatives
2. Bluetooth Specification v2.0+EDR

  • USB protocol: USB v1.1/2.0.
  • Frequency: 2.4GHz ISM band
  • Modulation: GFSK(Gaussian Frequency Shift Keying)
  • Transmit power: not more than 4dBm, Class 2
  • Sensitivity: not more than -84dBm at 0.1% BER
  • Rate: Asynchronous: 2.1Mbps(Max) / 160 kbps
  • Synchronous: 1Mbps/1Mbps
  • Security features: Authentication and encryption
  • Support profiles: Bluetooth serial port (master & slave)
  • Power supply: +3.3VDC 50mA
  • Working temperature: 5?C to 45?C
  • Max. serial baud rate: 1382400bps, support for hardware flow control transfer
  • Size:2.7cm x 1.3cm - 1.06inch x 0.51inch
