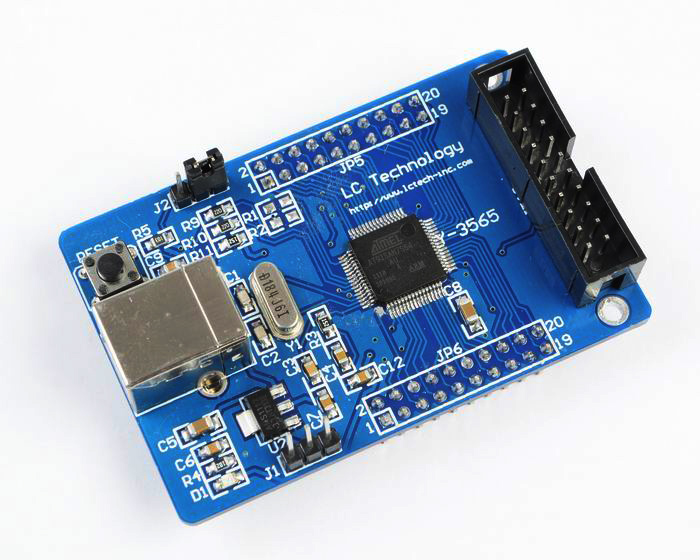

1. Onboard chip AT91SAM7S64
2. The standard JTAG interface board 20P
3. Onboard 18.432M crystal
4. With 5V to 3.3V chip AMS1117-3.3
5. USB
interface, 5V power supply
6. All the leads all the IO
7. Board size 57mm
x 43mm

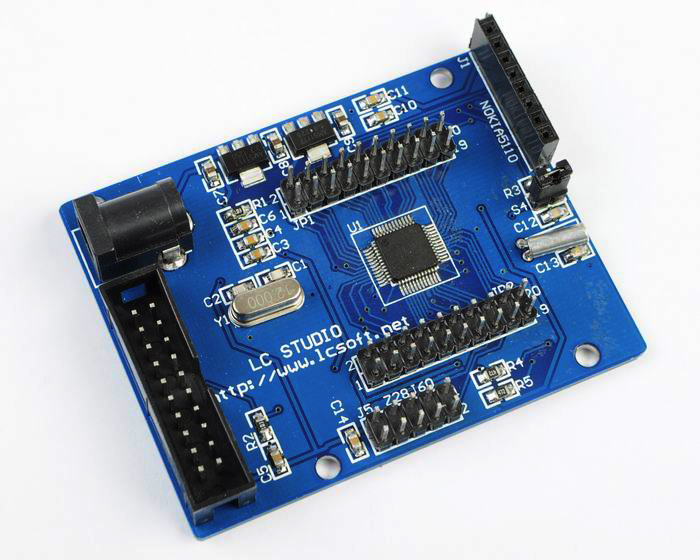

LPC2103 minimum system description:
1. onboard chip LPC2103
2. to
provide 32.768KHz and 12MHz Two Crystal Connection
3. 3.3 V and 1.8V power
supply circuit, filter measures to complete
4. using USB interface 5V power
supply
5. the on-board 20-pin JTAG interface
6. leads all the IO ports
are
7. support Nokia5110 LCD output
8. support ENC28J60 network
module

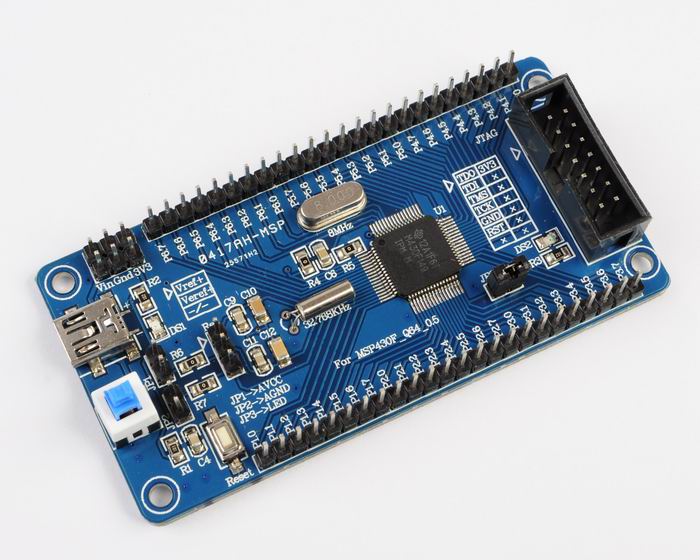

MSP430F149 minimum system description:
1. onboard chip MSP430F149
2. to
provide 32.768KHz and 8MHz Two Crystal Connection
3. 3.3 V power supply
circuit, filter measures to complete
4. using the miniUSB-powered, with reset
circuit
5. onboard TI standard JTAG interface (14-pin)
6. all the IO ports
are leads, plus a convenient test certificate P3.4 leads LED board work
status
7. provides 5V and 3.3V voltage output for easy power supply to the
peripheral module
8. PCB size: 41MM * 83MM
