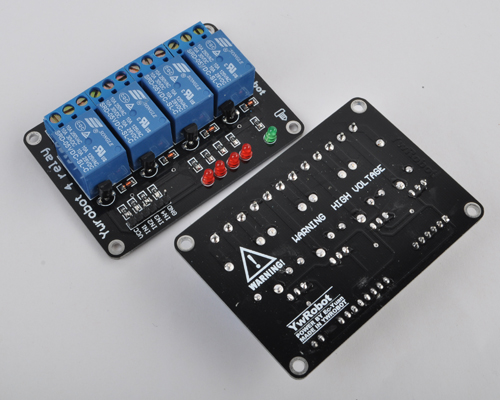

Channels 5V Relay Module For Arduino 51 ARM PIC AVR DSP MSP430

Introduction

  • Controlled by SONGLE relay,maximum alternating voltage 250V,maximum alternating current 10A
  • Driven by 8550 transistor, great drive power
  • Working voltage 5V
  • With fixed bolt hole,easy to install
  • PCB size:4.5cm * 4.5cm

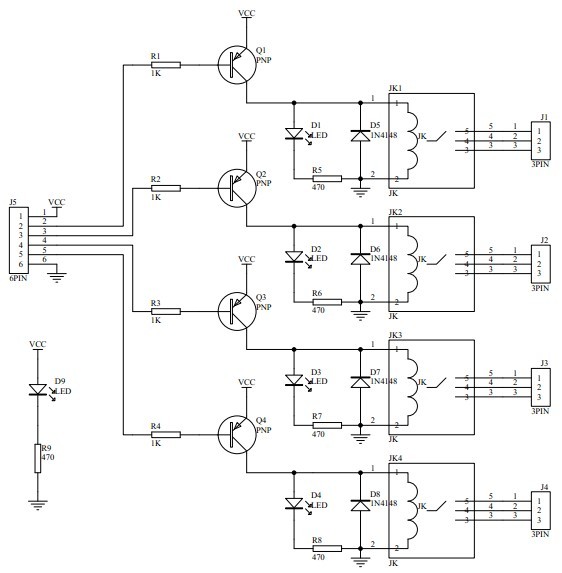

Schematic Diagram
