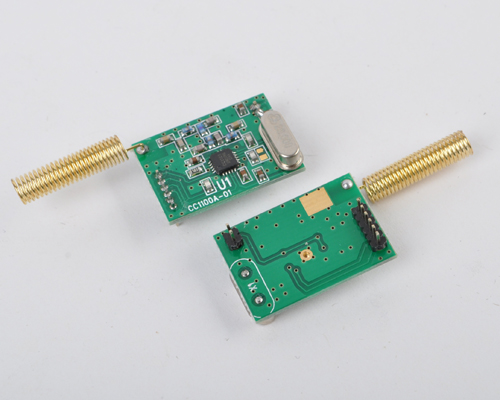

350m Distance Transmission CC1101 Wireless Module

Introduction

• High efficient SPI interface;
• High sensibility,sight distance reliable transmission distance up to 350m;
• Adopt FSK modulation,support OOK/ASK/MSK modulation;
• Carrier frequency 433MHz,other ISM band such as 315M/868M/915M can be made;
• Programmable control data transfer rate,as high as 500kbps;
• Programmable control output power can reach +11dBm for all support band;
• Can flexibly allocate various communication channels,fast frequency switching can meet the need of frequency hopping system;
• Low power consumption:Power 11mw,receive current <15mA ,emission current <25mA ,dormancy current 2uA ;
• Data buffer,sudden data transmission,data RSSI output,link quality indication;
• Support automatic cleaning channel access(CCA) before transmission,carrier detect system;
• Powerful digital features,can use cheap micro controller to get high performance RF system;
• 10K rate in 350m

 Supporting Development Board

MSP430F149



STC89C52



 STC10L08XE
